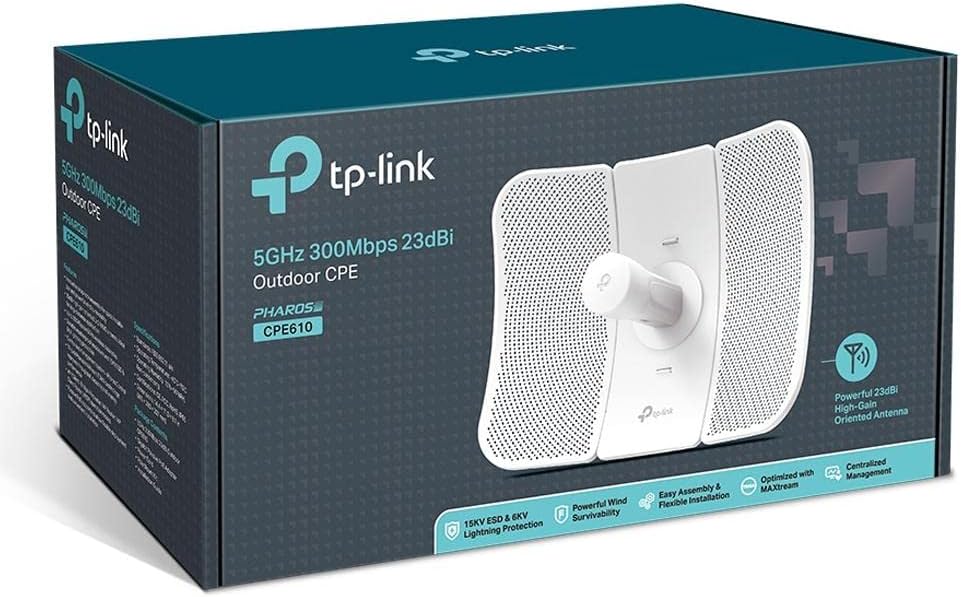

TP-Link 5GHz 300Mbps 23dBi Outdoor CPE – TL-CPE610

High-Gain Antenna for Long-Distance Coverage

The TP-Link 5GHz 300Mbps 23dBi Outdoor CPE – TL-CPE610 is built to deliver long-range, stable wireless connections. Equipped with a 23dBi directional antenna, it ensures focused signal transmission over extended distances, making it ideal for point-to-point and point-to-multipoint applications. Additionally, its 5GHz band helps reduce interference and offers up to 300 Mbps speeds for smooth outdoor networking.

Rugged Outdoor Design with Reliable Protection

To withstand outdoor conditions, the TL-CPE610 comes in a weatherproof housing that resists dust, rain, wind, and strong sunlight. It is also reinforced with 6000V lightning protection and UV-resistant casing to ensure durability. Moreover, this design makes the TP-Link CPE suitable for remote wireless bridging, rural internet access, and outdoor surveillance connectivity.

Simplified Deployment and Centralized Control

The TP-Link TL-CPE610 uses Passive PoE, which supports flexible installation up to 60 meters from the power source. Centralized management is available through Pharos Control software, allowing administrators to monitor and configure multiple devices easily. Furthermore, with its versatile operation modes such as Access Point, Client, Bridge, and Repeater, the CPE adapts to various outdoor network setups.

Technical Specifications

Wireless

• Wi-Fi Standard: IEEE 802.11a/n

• Frequency: 5.15 – 5.85 GHz

• Wireless Speed: Up to 300 Mbps (5GHz)

• Antenna: Built-in 23 dBi directional

• Transmission Power: Up to 27 dBm / 500 mW (adjustable)

Hardware

• Ports: 1 × 10/100 Mbps Ethernet Port (Passive PoE in)

• Buttons: Reset

• Power Supply: Passive PoE (24 V, up to 60 m)

Features

• Operation Modes: AP, Client, Repeater, Bridge, AP Router

• Centralized Management: Pharos Control software

• MAX Range: Up to 30 km+ (depending on environment)

• Security: WPA/WPA2, WPA-PSK/WPA2-PSK encryption

Protection & Durability

• Weatherproof enclosure (IPX5)

• 6000V lightning protection

• UV resistant casing

Dimensions & Power

• Dimensions: 11.2 × 3.5 × 2.4 in (285 × 95 × 60 mm)

• Power Consumption: 10.5 W Max
